• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1955/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29876

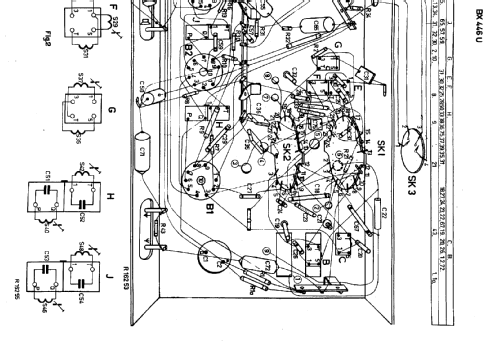

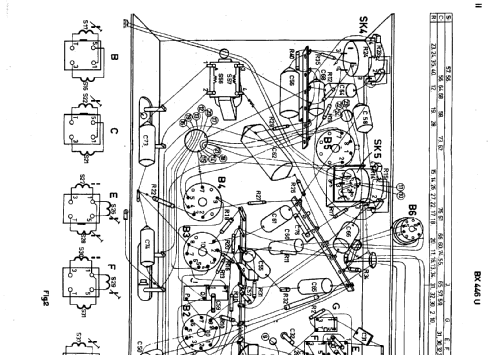

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH81 EF89 EBC81 UL84 DM71 UY42

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: BX446U - Philips; Eindhoven tubes

• Dimensions (WHD)
• 370 x 275 x 196 mm / 14.6 x 10.8 x 7.7 inch

• Notes

• 3 KW Bereiche.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
