- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1948 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 164565
Lautsprecher nicht original.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 458 kHz; 2 AF stage(s); none
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 14 cm = 5.5 inch
- Power out
- 4 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org

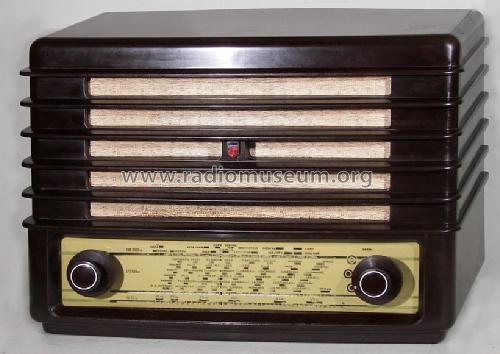

- Model: BX464A /01 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 415 x 300 x 185 mm / 16.3 x 11.8 x 7.3 inch
- Notes
-
Trotz der U-Röhren ein Wechselstromgerät.
Parallelgerät zum Siera S194A.
- Net weight (2.2 lb = 1 kg)
- 9.3 kg / 20 lb 7.8 oz (20.485 lb)
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Dieter Zwingel. See "Data change" for further contributors.
