- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29940

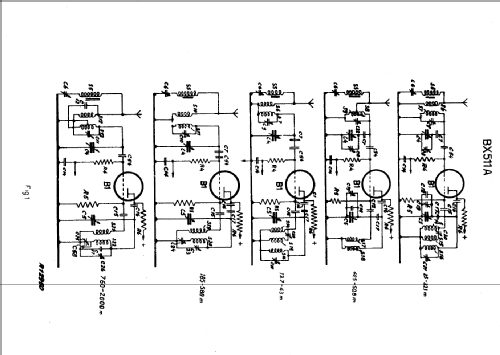

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Ready for FM, has Broadcast, Long Wave, several Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BX511A - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 515 x 345 x 230 mm / 20.3 x 13.6 x 9.1 inch
- Notes
-
AM radio for external antenna:
- LW: 150 - 395 kHz.
- BC: 517 - 1622 kHz.
- SW1: 6,95 - 21,9 MHz.
- SW2: 5,9 - 7,4 MHz (bandspread 40m, 50m).
- SW3: 9,35 - 12 MHz (bandspread 25m, 30m).
This radio can be used for FM with extension unit 7768-12 (87,5 - 100 MHz).Loudspeaker: 9746X (5Ω).Dial lamp: 2x 8045D (E10, 6.3V/320mA).
- Net weight (2.2 lb = 1 kg)
- 10 kg / 22 lb 0.4 oz (22.026 lb)
- Price in first year of sale
- 398.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman

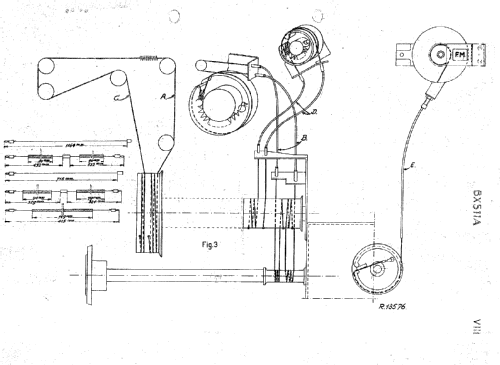

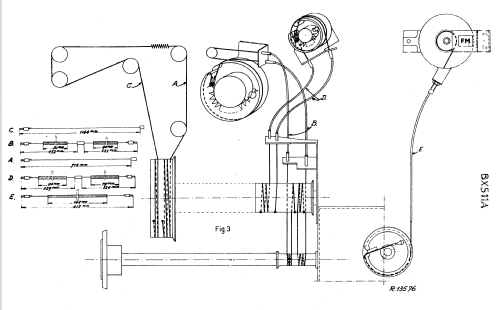

- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
- Other Models
-
Here you find 5244 models, 4386 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
