• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1952 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204443

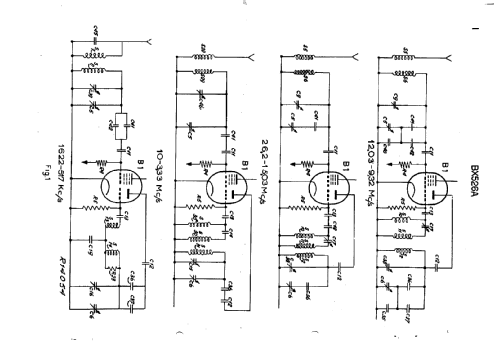

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EAF42 EBC41 EL41 EM34 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 90; 110; 127; 145; 190; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch

• Power out
• 3 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: BX526 - Philips; Eindhoven tubes

• Dimensions (WHD)
• 470 x 320 x 230 mm / 18.5 x 12.6 x 9.1 inch

• Notes
• 3 KW-Bereiche. Anschlüsse für Plattenspieler und Zusatzlautsprecher. Dial lamp: 8045D (6,3V/0,32A).

• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

• Author
• Model page created by Albert Weiss. See "Data change" for further contributors.
