- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 225525
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 6 AM circuit(s) 10 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 145; 160; 180; 220 Volt
- Loudspeaker
- 2 Loudspeakers / Ø 5 inch = 12.7 cm
- Power out
- 6 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

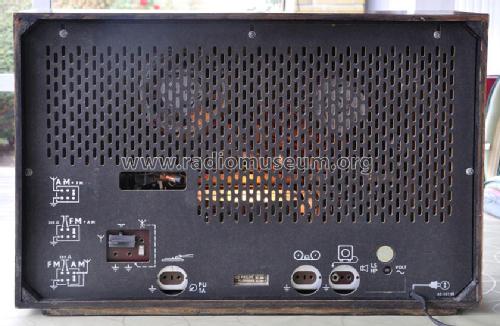

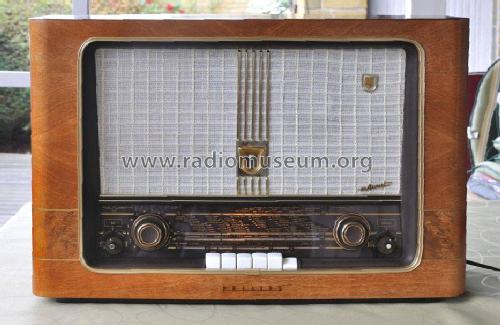

- Model: BX554A /19 - Philips; Eindhoven tubes
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 625 x 416 x 235 mm / 24.6 x 16.4 x 9.3 inch
- Notes
-
1. The loudspeakers are: 800 ohm Philips 9748 and 49
2. Exact schema is not available, but the schema for BX553A is valid with the folowing additions:
The HF 5 inch speaker is connected in parallel with the main speaker via a ca 0,1 microfarad capacitor.
The FM tuner has a two gang variable capacitor tuning.
- Net weight (2.2 lb = 1 kg)
- 11.5 kg / 25 lb 5.3 oz (25.33 lb)
- Author
- Model page created by Ola Gröndalen. See "Data change" for further contributors.
