- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1951 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 223438
- Number of Tubes
- 9
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz; 3 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Ready for FM, has Broadcast, Long Wave, several Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 24 cm = 9.4 inch
- Power out
- 9.4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

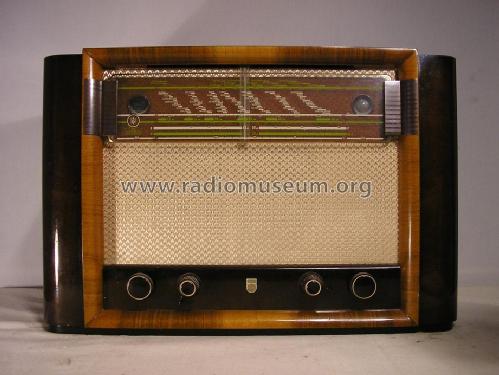

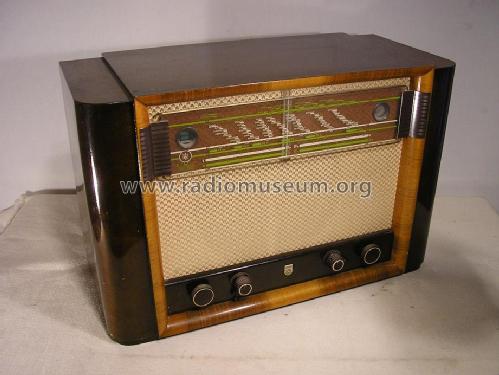

- Model: BX610A /40 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 380 x 265 mm / 22.8 x 15 x 10.4 inch
- Notes
-
AM radio for external antenna:
- LW: 150 - 395 kHz.
- BC: 517 - 1622 kHz.
- SW1: 6,95 - 21,9 MHz.
- SW2: 5,9 - 7,4 MHz (bandspread 40m and 50m).
- SW3: 9,35 - 12 MHz (bandspread 25m and 30m).
FM radio, only when extention module 7768-12 is built in: 87,5 - 100 MHz.
There is an alternative add on FM-module with 4x EF80 tubes, made by Helvar Finland.
Amplifier: Push-pull output stage with triode phase splitter.
Loudspeaker: 9758-05 (7Ω, with soundwave diffuser).
Dial lamps: 2x 8045D (E10, 6.3V/320mA) + 1x 8073D (E10, 6.3V/100mA).
- Net weight (2.2 lb = 1 kg)
- 16.5 kg / 36 lb 5.5 oz (36.344 lb)
- Author
- Model page created by Timo Rantasaari. See "Data change" for further contributors.
