• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 320223

• Number of Tubes
• 9

• Valves / Tubes
• ECH42 EBF80 EBC41 EBC41 EM34 EL41 EL41 AZ41 AZ41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Ready for FM, has Broadcast, Long Wave, several Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

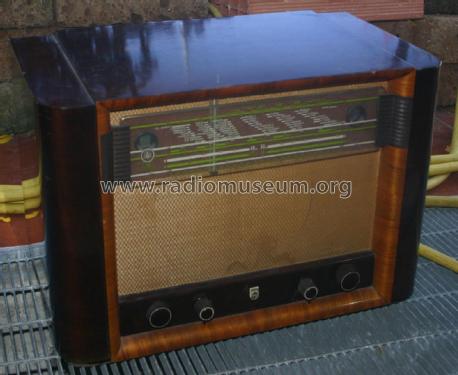

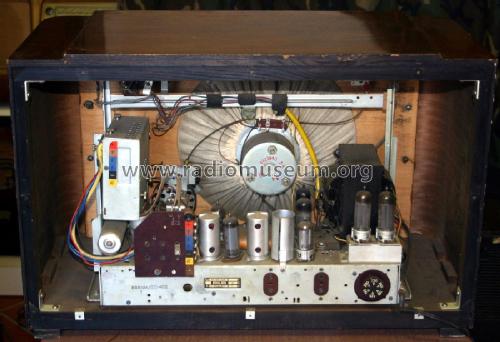

• Model: BX610A /20 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 580 x 380 x 266 mm / 22.8 x 15 x 10.5 inch

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
