- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1947/1948
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 13392
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

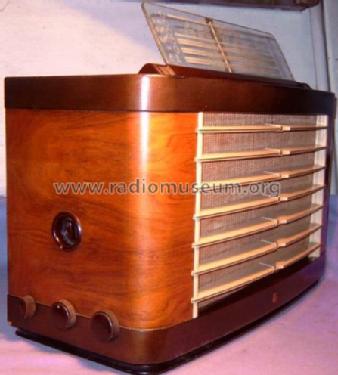

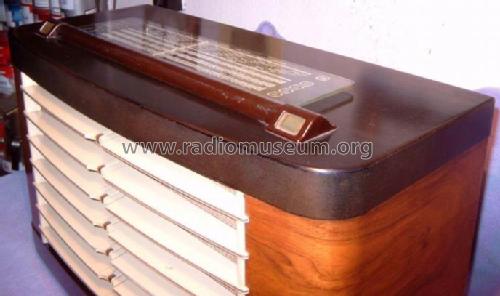

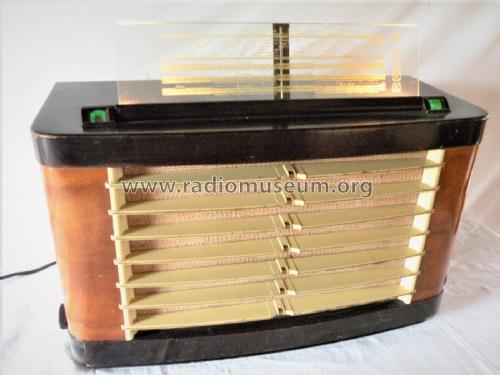

- Model: BX660X - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 580 x 355 x 260 mm / 22.8 x 14 x 10.2 inch
- Notes
-
Auch für Frankreich und der Schweiz.
AM radio for external antenna:
- LW: 150 - 423 kHz.
- BC: 545 - 1750 kHz.
- SW1: 5,8 - 9,8 MHz (30,6m - 51,2m with bandspread at 40m and 50m).
- SW2: 9,5 - 15,4 MHz (19,4m - 31,6m with bandspread at 25m and 30m).
- SW3: 15 - 23 MHz (13m - 20m with bandspread at 16m and 20m).
The radio contains a 6-section variable capacitor from which 3 sections are used for the LW and BC band, the 3 other sections are used for the shortwave bands. These shortwave sections have each 2 large gaps in every plate to permit a slower change in capacitance when turned in, thus effectively stretching the tuning scale in those areas. See the technical documents uploaded with this model (in Dutch).A selenium diode is used in the AVC circuitry.Loudspeaker: 9702-05 (7Ω, with soundwave diffuser).Dial lamp: 2x 8045D (E10, 6.3V/320mA).The radio can also be used on DC mains when adapted with a unit 7882C vibrating converter.
- Net weight (2.2 lb = 1 kg)
- 13.5 kg / 29 lb 11.8 oz (29.736 lb)
- Price in first year of sale
- 700.00 SFr
- External source of data
- E. Erb 3-907007-36-0
- Circuit diagram reference
- Thali-Schemasammlung und Tungsram-Röhrenbestückung.
