• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1948/1949

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29977

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• UCH21 UF21 UF21 UBL21 UM4 UY1N

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• AC/DC-set / 110; 125; 200; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: BX680U - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 570 x 400 x 245 mm / 22.4 x 15.7 x 9.6 inch

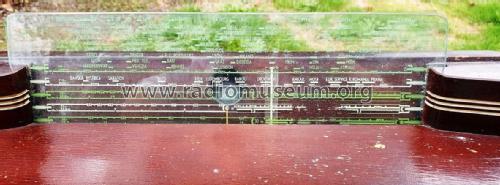

• Notes
• AM radio for external antenna:
  • LW: 150 - 420 kHz.
  • BC: 420 - 1620 kHz.
  • SW1: 8,1 - 5,9 MHz (37m - 50m with bandspread 49-50m).
  • SW2: 9,67 - 7,06 MHz (31m - 42,5m with bandspread 40-42m).
  • SW3: 12,5 - 9,43 MHz (24m - 31,8m with bandspread 30-31m).
  • SW4: 15,8 - 11,6 MHz (19m - 25,8m with bandspread 25m).
  • SW5: 19,3 - 15 MHz (15,5m - 20m with bandspread 19-20m).
  • SW6: 23,08 - 17,65 MHz (13m - 17m with bandspread 15-16m).

  By connecting a capacitor in series with the tuning capacitor, the total capacity change per unit of rotation is no longer linear but has the effect of stretching the chosen shortwave band when the tuning capacitor is turned in (at lowest frequency or highest meters).

  Loudspeaker: 9702-05 (7Ω, with soundwave diffuser).

  Dial lamp: 2x 8097D (E10, 19V/97mA).

• Net weight (2.2 lb = 1 kg)
• 9.8 kg / 21 lb 9.4 oz (21.586 lb)

• Price in first year of sale
• 395.00 Hfl

• Source of data
• Technisch- Commercieel - Radio Vademecum Staleman

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
