BX716X /01 /51
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1952/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29987
Marktplaats
Marktplaats
Marktplaats

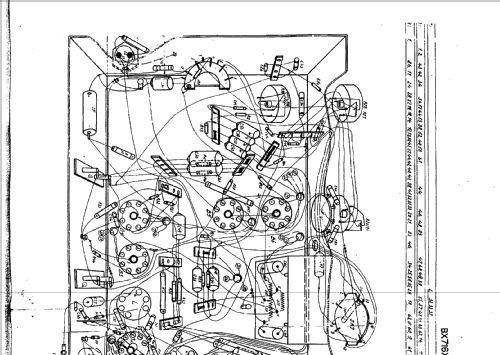

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 452 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BX716X /01 /51 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 585 x 380 x 250 mm / 23 x 15 x 9.8 inch
- Notes
- 5 SW bands. Model -01: tropical band 30-91 m. Model -51: tropical band 40-134 m.
- Net weight (2.2 lb = 1 kg)
- 16.5 kg / 36 lb 5.5 oz (36.344 lb)
- Price in first year of sale
- 750.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
