BX732A

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 29991

• Picture

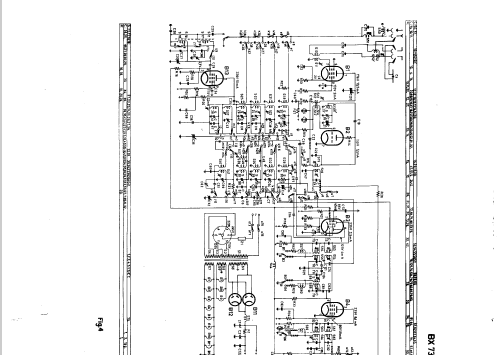

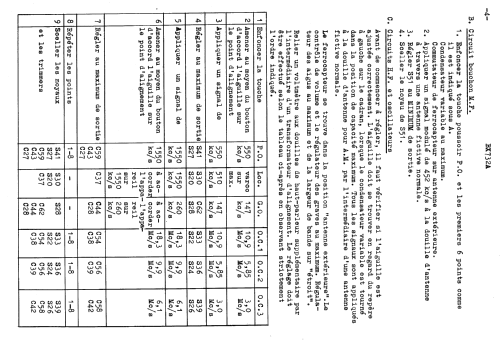

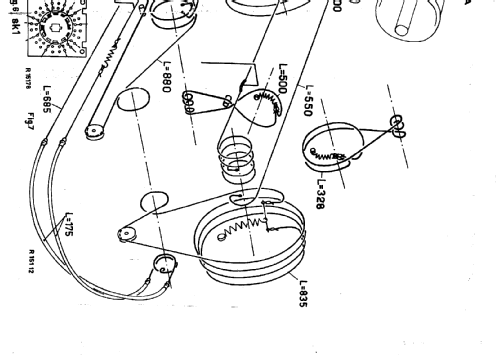

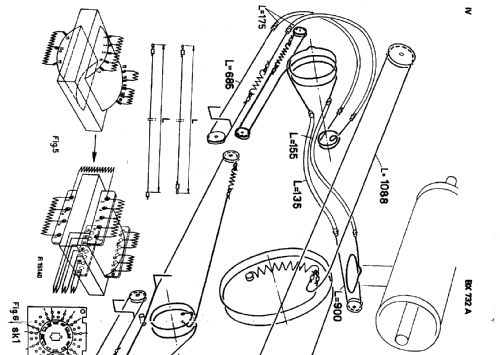

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 13

• Valves / Tubes
• EF80 EC92 EF85 ECH81 EM34 EF41 EBF80 EB41 ECC40 EL84 EL84 EZ80 EZ80

• Main principle
• Superhet with RF-stage; ZF/IF 452/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 10 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 245 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 19 cm = 7.5 inch

• Power out
• 10 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: BX732A - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 760 x 410 x 280 mm / 29.9 x 16.1 x 11 inch

• Notes

• AM radio with built-in ferroceptor and RF amplifier stage only for BC and LW. Shortwave bands and the presettable BC band ("local") bypass the RF stage. There is a switch to select the bandwidth in the I.F. stages (small, medium or large).

  • LW: 148 - 275 kHz.
  • BC: 515 - 1612 kHz.
  • BC "Local": 515 - 1612 kHz (with its own tuning capacitor).
  • SW1: 3,1 - 6 MHz (97m - 50m).
  • SW2: 5,9 - 9,8 MHz (51m - 30m).
  • SW3: 11 - 18 MHz (27m - 17m).
  FM radio with dipole antenna input: 87,5 - 100 MHz.

  Separated tone control for bass and treble.

  Amplifier: Push-pull.

  Loudspeakers: 2x 9770M (5Ω, co-axial).

  Dial lamps: 2x 8045D (E10, 6.3V/320mA).


  Compare with the similar German model Uranus 54 BD733A.

• Net weight (2.2 lb = 1 kg)
• 18 kg / 39 lb 10.4 oz (39.648 lb)

• Price in first year of sale
• 558.00 Hfl

• Source of data
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
