BX756A
Philips Belgium (Belgien)
- Country
- Belgium
- Manufacturer / Brand
- Philips Belgium (Belgien)
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 327530
- Number of Tubes
- 9
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 90; 110; 127; 145; 180; 200; 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Various materials
- from Radiomuseum.org
- Model: BX756A - Philips Belgium Belgien
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 26 x 10.5 x 10 inch / 660 x 267 x 254 mm
- Notes
-

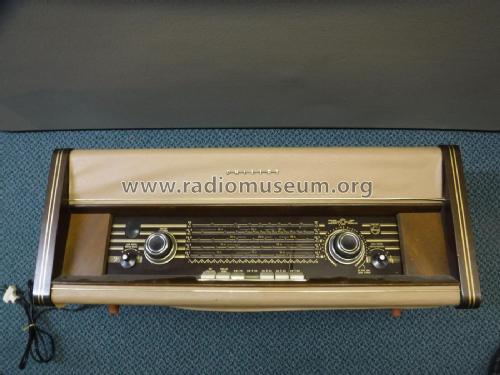

The set has a wooden case with a beige vinyl wrap across the top and on the lower part of the case.
- Net weight (2.2 lb = 1 kg)
- 27.4 lb (27 lb 6.4 oz) / 12.440 kg
- Author
- Model page created by Les Frost. See "Data change" for further contributors.
