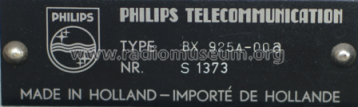

BX925A /00a /01a

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1952/1953

• Category
• Commercial Receiver (may include amateur bands)

• Radiomuseum.org ID
• 30001

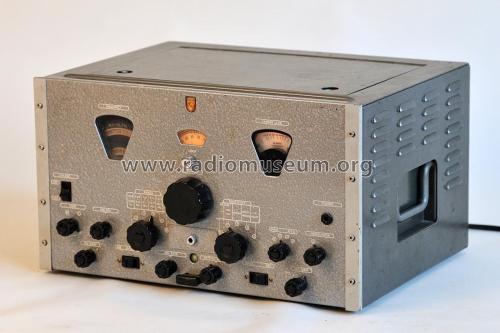

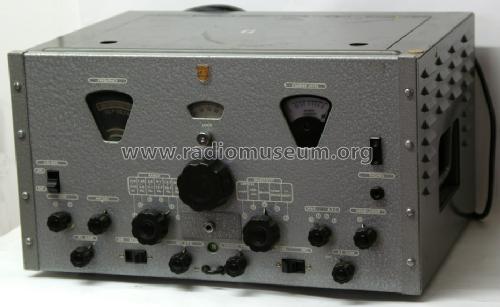

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

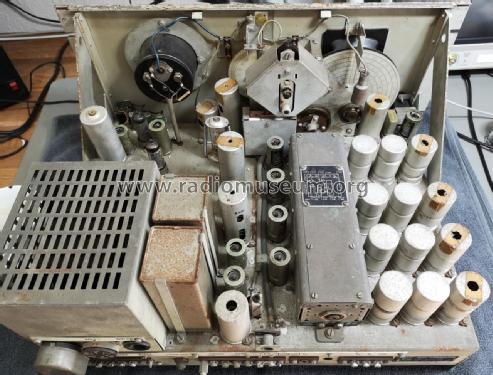

• Number of Tubes
• 15

• Valves / Tubes
• EF93 EF93 EK90 EF93 EF93 EF93 EAA91 EAA91 EF93 EL90 EAA91 5Y3GT 150C1K EF93 EF93 EL90

• Main principle
• Superhet with RF-stage; ZF/IF 735 kHz

• Tuned circuits
• 10 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and more than two Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 1.5 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: BX925A /00a /01a - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 490 x 275 x 415 mm / 19.3 x 10.8 x 16.3 inch

• Notes

• Empfangsbereich 210-540 kHz und 1,45 bis 32 MHz (5 Bereiche),
  A1 A2 und A3 Empfang möglich.

  Ausgänge:

  • Linienausgang 600Ω
  • Lautsprecher/Kopfhörer 5Ω

• Net weight (2.2 lb = 1 kg)
• 32 kg / 70 lb 7.8 oz (70.485 lb)

• Literature/Schematics (4)
• -- Original-techn. papers.

• Author
• Model page created by Iven Müller. See "Data change" for further contributors.
