Cabrio N5X04T /22
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1961/1962
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 24090
aus Serviceanleitung

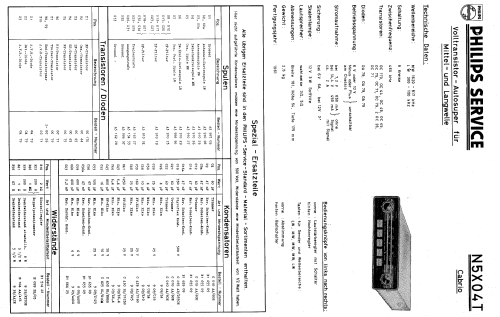

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 4 AF stage(s)
- Tuned circuits
- 9 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 6/12 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Cabrio N5X04T /22 - Philips; Eindhoven tubes
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 181 x 54 x 175 mm / 7.1 x 2.1 x 6.9 inch
- Notes

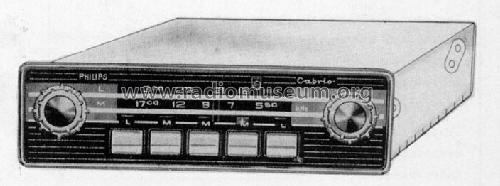

- Philips Cabrio N5X04T/22.
Frühes All-Transistor-Autoradio des Herstellers. Im Schaltbild ist Transistor T2 (Mischstufe) mit OC45 bezeichnet, was falsch ist. OC44 ist laut Datenblatt richtig.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Price in first year of sale
- 299.00 DM
- External source of data
- Erb
- Source of data
- HdB d.Rdf-& Ferns-GrH 1961/62
