• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1967 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 113039

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• BF195 BF195 BF194 BF194 BF194 BC157 BC148 AC187 AC188

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

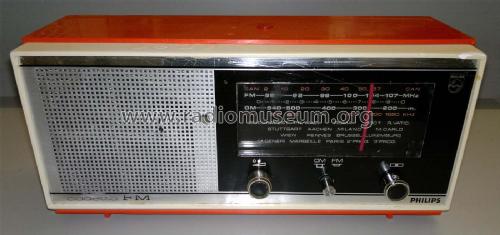

• Model: Cadetto FM 19RB116 - Philips Italy; Milano MI

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 310 x 150 x 120 mm / 12.2 x 5.9 x 4.7 inch

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• -- Schematic (Schemario di Apparecchi Radio a Transistori Vol. 6° Antonelliana)

• Author
• Model page created by Romolo Amazio. See "Data change" for further contributors.
