• Country
• Brazil

• Manufacturer / Brand
• Philips do Brasil S.A.

• Year
• 1980 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 326929

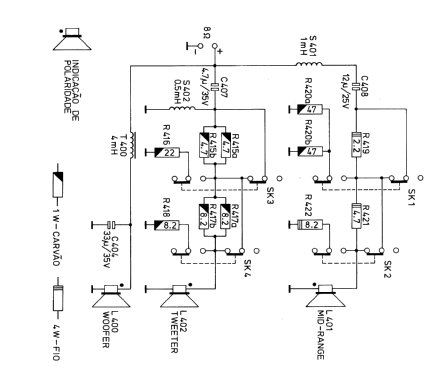

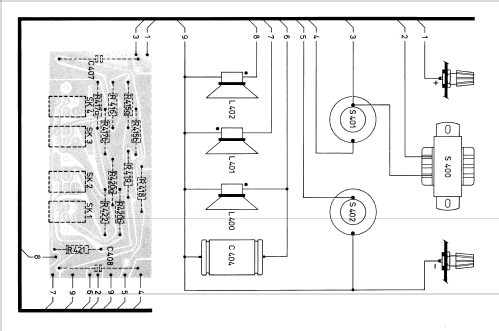

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Details
• Hi-Fi equipment

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

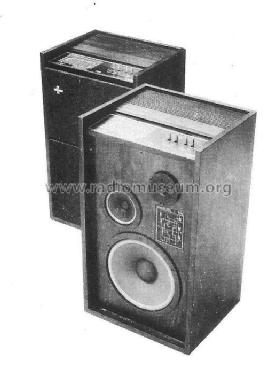

• Model: Caixa acústica 06AH486 /00 - Philips do Brasil S.A.

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 380 x 630 x 330 mm / 15 x 24.8 x 13 inch

• Notes

• Loudspeaker box, 30 Watts rms power handling with attenuators (3dB, 6 dB and 9dB)

• Net weight (2.2 lb = 1 kg)
• 20 kg / 44 lb 0.8 oz (44.053 lb)

• Literature/Schematics (1)
• - - Manufacturers Literature

• Author
• Model page created by Antonio Rabitti. See "Data change" for further contributors.
