• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1954/1955

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 19587

• • Brand: Deutsche Philips-Ges.

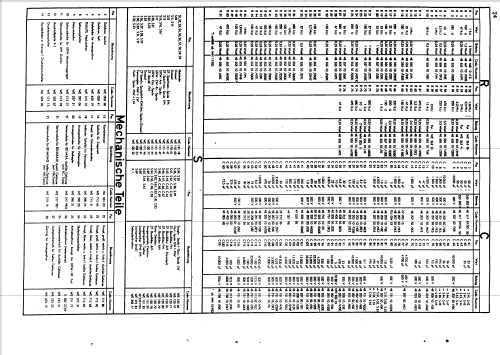

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EBF80 EM80 EB41 ECC83 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Tuned circuits
• 8 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-245 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

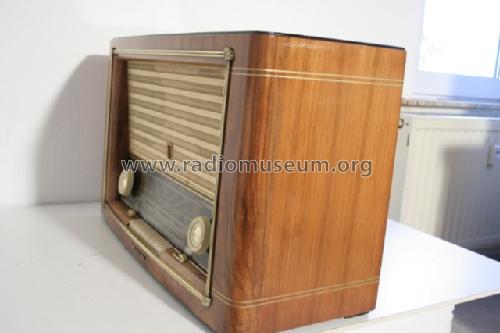

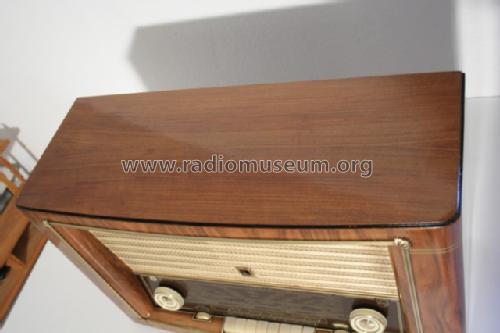

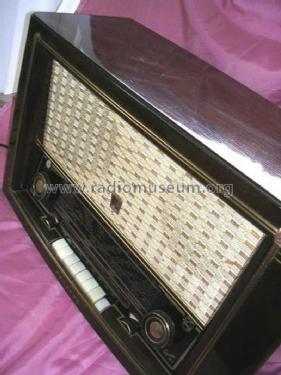

• Model: Capella 643 BD643A - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 680 x 420 x 280 mm / 26.8 x 16.5 x 11 inch

• Notes
• Zweikanal-Verstärkung mit getrennten Endstufen.

• Net weight (2.2 lb = 1 kg)
• 15 kg / 33 lb 0.6 oz (33.04 lb)

• Price in first year of sale
• 478.00 DM

• External source of data
• Erb

• Source of data
• Rundfunk- und Fernseh-Katalog 1954/55

• Literature/Schematics (1)
• Radio und Fernsehen (DDR) (11-1954, Seite 323)
