Capella Reverbeo B7X43A /22

• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1964/1965

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25699

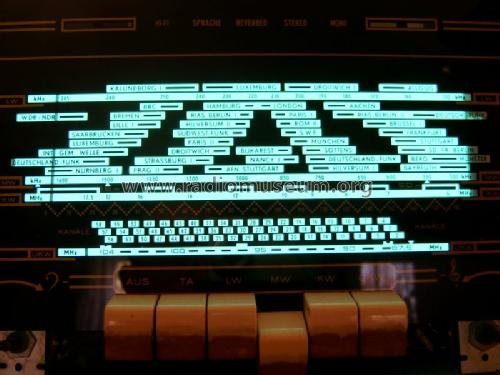

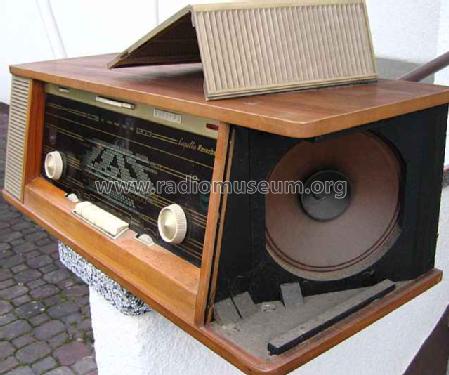

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECH81 EF89 EBF89 EM80 EAA91 ECC83 EL84 EL84 EZ81

• Number of Transistors
• 7

• Semiconductors
• AF126 AF126 AF126 AC125 AC125 AC127 OC71

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 145; 165; 220; 240 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 7 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Capella Reverbeo B7X43A /22 - Philips; Eindhoven tubes

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 710 x 265 x 290 mm / 28 x 10.4 x 11.4 inch

• Notes
• Stereo-Decoder eingebaut; Stereo-NF-Verstärker mit 2 Endstufen je 3,5 W; mit Ausgangsübertragern für 800 Ohm Lautsprecher. Verstärker mit OC71 für eingebaute Nachhall-Einrichtung integriert.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• Price in first year of sale
• 865.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1964/1965

• Literature/Schematics (1)
• -- Original-techn. papers.
