• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1959/1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 22324

• • Brand: Deutsche Philips-Ges.

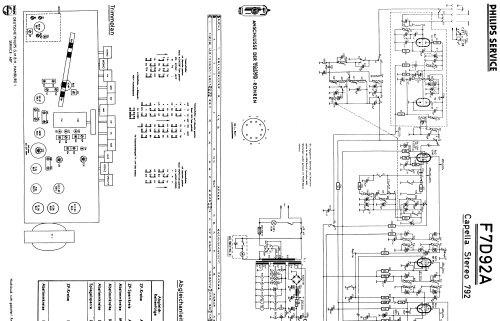

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• ECC85 ECH81 EBF89 EBF89 EM84 ECC83 ECC83 EL86 EL86 EL86 EL86

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 8 AM circuit(s)     12 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Capella Stereo 792 F7D92A - Philips Radios - Deutschland

• Dimensions (WHD)
• 1500 x 840 x 385 mm / 59.1 x 33.1 x 15.2 inch

• Notes
• Dioden: 2× OA72 ; Plattenwechsler: AG 1007/WC 51 Automatic mit Tonkopf: AG 3060

• Price in first year of sale
• 998.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1959/60
