22RN312 /00 /15 /19 /22

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1971
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 227920

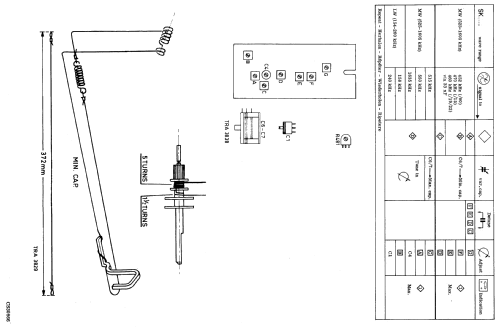

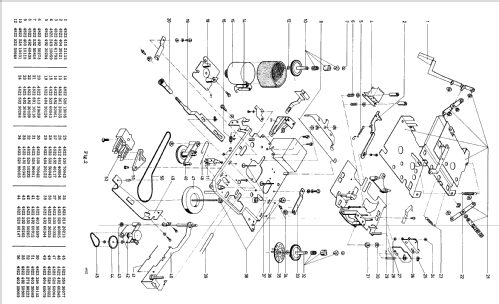

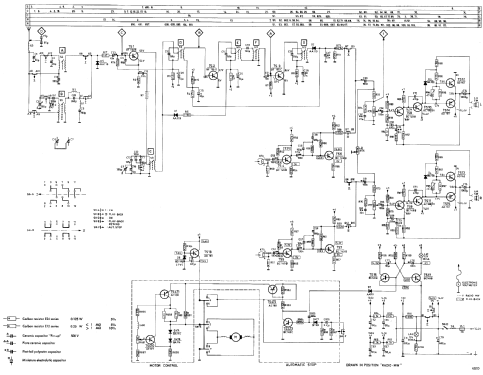

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 22
  • Main principle
  • Superhet with RF-stage; ZF/IF 452, 460 or 470 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Details
  • Cassette-Recorder or -Player
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 12 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: 22RN312 /00 /15 /19 /22 - Philips; Eindhoven tubes
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 148 x 68 x 186 mm / 5.8 x 2.7 x 7.3 inch
  • Notes

  • Philips MW/LW Autoradio 22RN312 mit Stereo-Cassettenspieler.
    Ausgangsleistung 2x 6 W, Balanceregler, schneller Vorlauf, Autostop.

    Versions:

    • /00 = IF 452 kHz
    • /15 = IF 470 kHz
    • /19 and /22 = IF 460 kHz

    Semiconductors listed once per type.

  • Mentioned in
  • -- Original-techn. papers.
  • Author
  • Model page created by Manfred Fries. See "Data change" for further contributors.
