• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1983 ??

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 282093

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC548 BC548 BC548 BC558 BC548 BC548 BC338 BC338 BF324 BF495 BF324 BF494 TEA5550 TDA1005 TDA1579 TEA5560

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

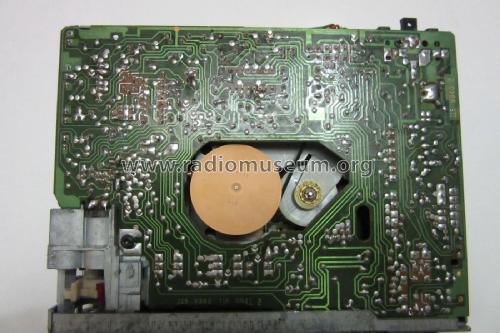

• Model: Cassette auto radio 22AC514 /02 /93 - Philips; Eindhoven tubes

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 44 x 135 mm / 7.1 x 1.7 x 5.3 inch

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
