• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1965

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 199534

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• AC125 AC125 AC125 AC126 AC128 AC128 AC125

• Main principle
• Audio-Amplification; 2 AF stage(s)

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / 5 x 1,5 / 8,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.4 inch = 6.1 cm

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

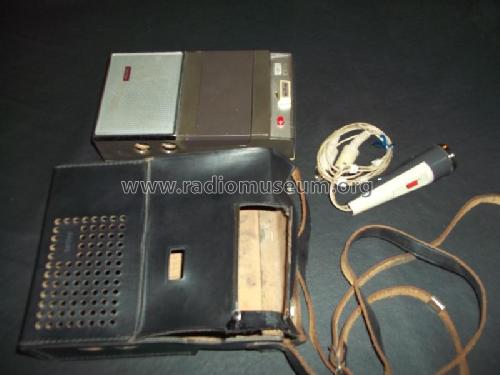

• Model: Cassetten-Recorder EL3301 /00 /00T - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 115 x 55 x 195 mm / 4.5 x 2.2 x 7.7 inch

• Notes

• Mono cassette recorder and player.

  Speed: 4,75 cm/sec.

  1 combined input/output din connector:

  • Input:microphone (EL3797), radio or grammophone: 0.3mV / 2KΩ.
  • Output: external amplifier: 0.5V / 20KΩ.

  1 combined connector for: headphones, external start/stop switch or external power supply (EL3786).

  • Headphones: 200mV in 1500Ω.

  Frequency range: 120 - 6000 Hz.

  S/N ratio: 45dB or better.

• Net weight (2.2 lb = 1 kg)
• 1.350 kg / 2 lb 15.6 oz (2.974 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Dario Marujo. See "Data change" for further contributors.
