• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1966–1968

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 26509

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• PC900 PC900 ECH81 EF183 EM87 ECL86 ECL86

• Number of Transistors
• 6

• Semiconductors
• AF126 AF126 AC126 AC126 AC126 AC128

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-127; 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 13 cm = 5.1 inch

• Material
• Wooden case

• from Radiomuseum.org

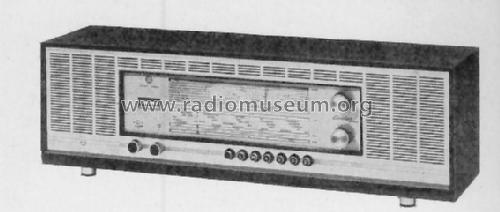

• Model: Castor Stereo 461 12RB461 - Philips Radios - Deutschland

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 650 x 200 x 220 mm / 25.6 x 7.9 x 8.7 inch

• Notes
• Dioden: 9 × AA119, OA200.
  Stereo-Decoder eingebaut.
  Stereo-NF-Verstärker mit 2 Endstufen je 5,5 W.

• Net weight (2.2 lb = 1 kg)
• 7.6 kg / 16 lb 11.8 oz (16.74 lb)

• Price in first year of sale
• 349.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1966/1967

• Mentioned in
• Taxliste Franzis Verlag

• Literature/Schematics (1)
• -- Original-techn. papers.
