• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1980

• Category
• Citizen Band Equipment

• Radiomuseum.org ID
• 184016

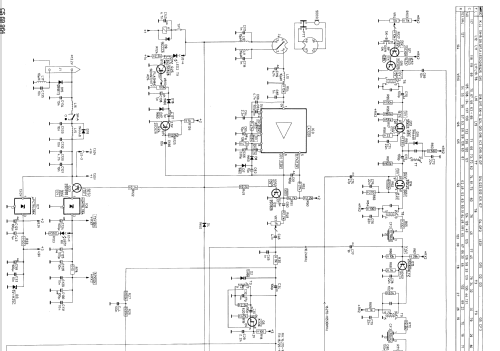

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Transceiver; ZF/IF 455/10695 kHz

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Storage and/or dry batteries / 13,2 Volt

• Loudspeaker
• Magnetic loudspeaker (reed) generic. / Ø 6 cm = 2.4 inch

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: CB Radio 369 22AP369 /14 - Philips; Eindhoven tubes

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 160 x 45 x 200 mm / 6.3 x 1.8 x 7.9 inch

• Notes

• Philips CB Radio model 369 is a mobile transceiver in compliance with the legalisation for CB equipment in the Netherlands in 1980. Allowed were 22 fixed channels, PLL synthesized, in the frequency-range from 26,965 MHz to 27,225 MHz, narrow band FM, with 0,5 watts maximum transmitting-power. To optimize reception a delta-tune switch 500 Hz up or down was provided, as well as a squelch. Signal strength was indicated by uplighting of one to five leds. This CB radio was also available in a cabinet with a bigger speaker and a 220 V mains power supply with the model name: MARC/CB base station AP569.

• Net weight (2.2 lb = 1 kg)
• 1.2 kg / 2 lb 10.3 oz (2.643 lb)

• Price in first year of sale
• 449.00 HFL

• Literature/Schematics (1)
• Philips Service Manual 4822 725 13566

• Author
• Model page created by Jan Terranea. See "Data change" for further contributors.
