CD Stereo Digital Midi System FCD285 /06 /30 /35 /36

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 327724

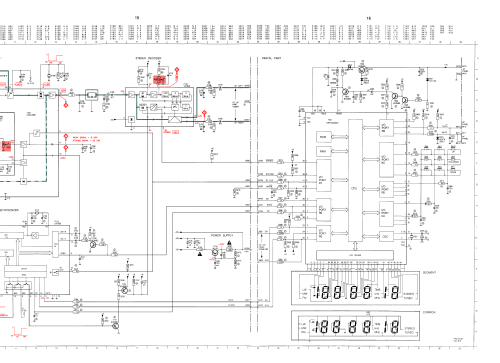

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • PLL, Phase-locked loop
  • Wave bands
  • Broadcast, Long Wave and FM or UHF.
  • Details
  • Other Combination - see Notes
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 15 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: CD Stereo Digital Midi System FCD285 /06 /30 /35 /36 - Philips; Eindhoven tubes
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 360 x 248 x 379 mm / 14.2 x 9.8 x 14.9 inch
  • Notes

  • Philips CD Stereo Digital Midi System FCD285

    • Record player type HP7D277
    • Integrated stereo amplifier with 5 band graphic equalizer
    • Double cassette deck type YMW47C-83
    • CD module tray/07660
    • Mains voltages: 220V with service solution (welding) for 110-127-240V; 50-60 Hz
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
