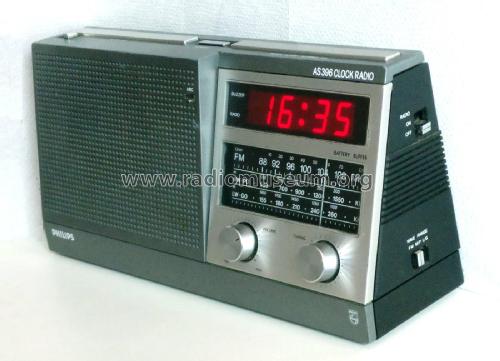

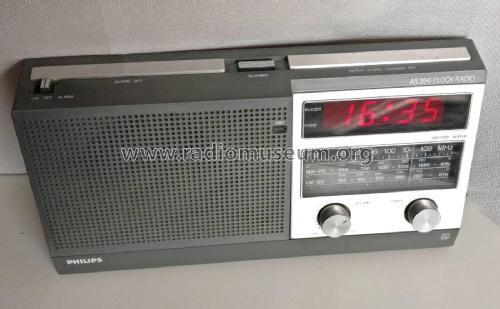

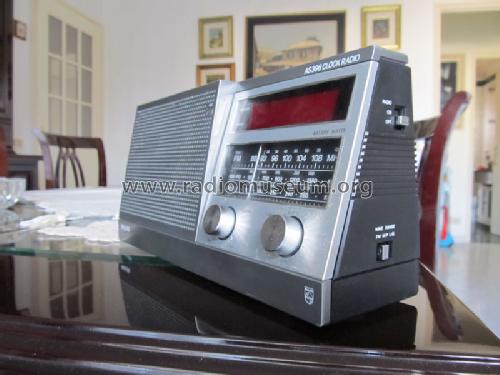

Clock Radio 396 90AS396 /00 /15 /40
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 203932
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 465/10700 kHz
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Line / Storage batteries (perhaps also batteries) / 220-240 / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
- Power out
- 0.3 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Clock Radio 396 90AS396 /00 /15 /40 - Philips; Eindhoven tubes
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 255 x 125 x 80 mm / 10 x 4.9 x 3.1 inch
- Notes
- The clock needs a 9 Volt battery for backup. The model was probably made in the Netherlands for Norway.
- Net weight (2.2 lb = 1 kg)
- 1 kg / 2 lb 3.2 oz (2.203 lb)
- Literature/Schematics (1)
- -- Original-techn. papers.
- Author
- Model page created by Giovanni Scalavino. See "Data change" for further contributors.
