Clock-Radio 7250 /30
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1976/1977
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 240595

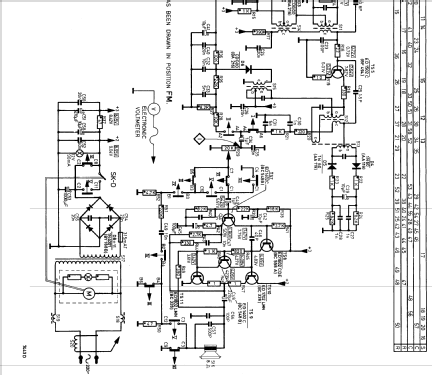

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Clock-Radio 7250 /30 - Philips; Eindhoven tubes
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 210 x 140 x 108 mm / 8.3 x 5.5 x 4.3 inch
- Notes
-
Wave ranges:
FM: 87,5 - 104 MHz.
MW: 520 - 1605 kHz.
One semiconductor per type listed.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
