Clockradio 90AS096 /00 /15 /40 /50 /51 /65 /90
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1977 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 275434

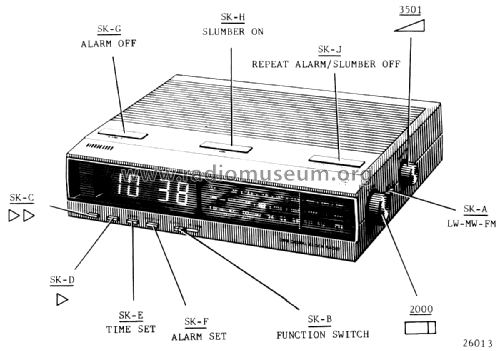

Aus dem Service-Manual
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 12
- Main principle
- Superheterodyne (common); ZF/IF 468/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 4 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 50 Hz, 110-127; 220-240 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.2 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Clockradio 90AS096 /00 /15 /40 /50 /51 /65 /90 - Philips; Eindhoven tubes
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Notes
-
Radiowecker. Siehe auch Radiola Digital Clock Radio 90AS096 /28
Jeder Halbleitertyp ist einmal gelistet.
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
