• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182025

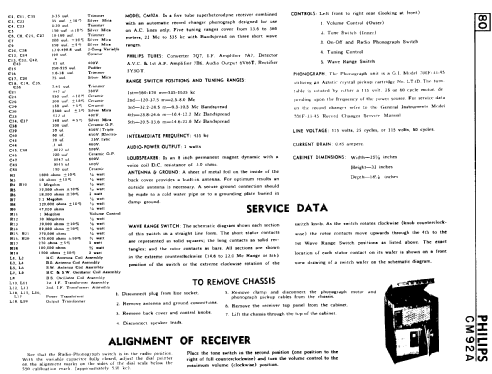

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 7Q7 7A7 7B6 6V6GT 5Y3GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm

• from Radiomuseum.org
• Model: CM92A - Philips Canada

• Dimensions (WHD)
• 25.5 x 32 x 18.5 inch / 648 x 813 x 470 mm

• Notes
• Canada Supplements.

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada supplements Philips page 79 to 81

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
