Colette Automatic de Luxe P4D54T Holz
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1966–1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 6991
-
- Brand: Deutsche Philips-Ges.

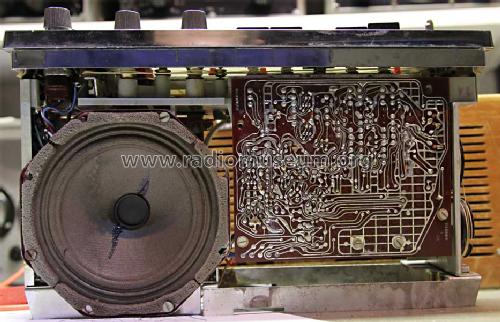

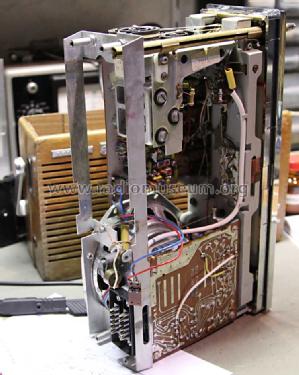

Eigenes Gerät und eigenes Foto.

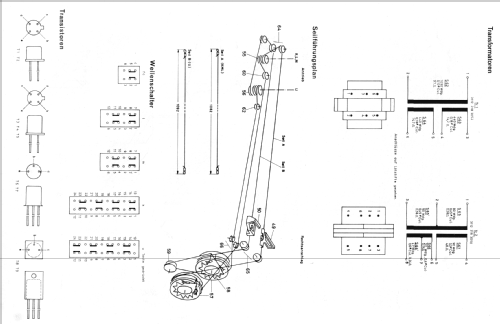

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Semiconductors
- BF115 BF115 AF121 AF121 AF121 AC125 AC126 AC128 AC128 BA102 AA119 AA119 AA119 AA119 AA119
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Dry Batteries / 6 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Power out
- 2.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Colette Automatic de Luxe P4D54T [Holz] - Philips Radios - Deutschland
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 315 x 195 x 90 mm / 12.4 x 7.7 x 3.5 inch
- Notes
-

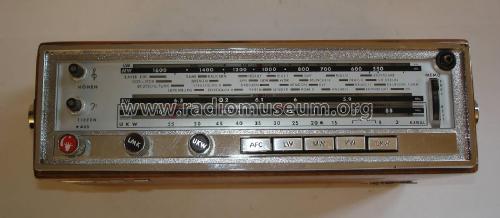

4 mechanische, frei wählbare Senderrasten ("Sender-Memomatic") auf UKW.
Netzbetrieb mit zusätzlichem Netzteil möglich. Betrieb im Auto mit Autohalterung NP1038 oder 12ER8100.
Siehe auch Ausführung in Kunststoff.
- Net weight (2.2 lb = 1 kg)
- 3.6 kg / 7 lb 14.9 oz (7.93 lb)
- Source of data
- Handbuch VDRG 1966/1967 / Radiokatalog Band 1, Ernst Erb
- Literature/Schematics (1)
- -- Original-techn. papers.
