• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1988 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 268782

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A66-540X

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

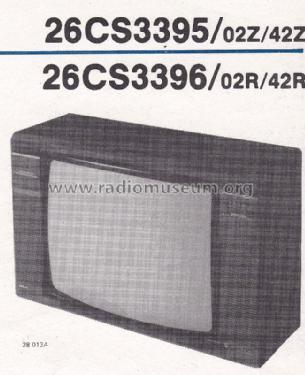

• Model: Color TV 26CS3395 /02Z /42Z Ch= K35 - Philips; Eindhoven tubes

• Shape
• Tablemodel, low profile (big size).

• Literature/Schematics (1)
• NL-Service Manual

• Author
• Model page created by Egon Strampe. See "Data change" for further contributors.
