Combinado TAP 06AH895

Philips do Brasil S.A.

Data
Forum
Pictures
Collections

  • Year
  • 1970 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 296011

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 18
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Changer (Record changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 20 W (undistorted)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Combinado TAP 06AH895 - Philips do Brasil S.A.
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 528 x 173 x 348 mm / 20.8 x 6.8 x 13.7 inch
  • Notes

  • COMBINADO TAP 06AH895 is a set composed by functions: MW FM radio, record player and amplifier. TAP is a short form for "Tuner Amplifier Pickup". It has input and output connections for a stereo tape deck.

    Record changer is model 06GC057/02
    The set is sold with a pair of speaker box model 06AH417

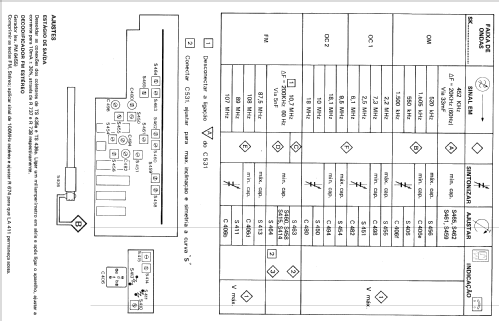

  • Literature/Schematics (1)
  • - - Manufacturers Literature
  • Author
  • Model page created by Antonio Rabitti. See "Data change" for further contributors.
