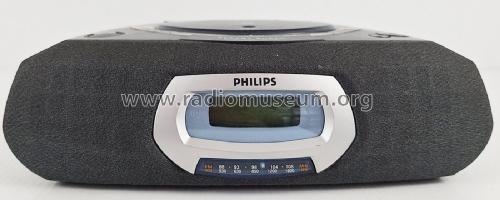

Compact Disc Clock Radio AJ3935 /10

Philips 飞利浦; China

Data
Forum
Pictures
Collections

  • Year
  • 1995 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 358331

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 468/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • CD-Player, -Writer, MD, MOD (audio)
  • Power type and voltage
  • Alternating Current supply (AC) / 50 Hz, 230-240 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 1 W (max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Compact Disc Clock Radio AJ3935 /10 - Philips 飞利浦; China
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 300 x 96 x 240 mm / 11.8 x 3.8 x 9.4 inch
  • Notes

  • TECHNICAL SPECIFICATIONS

    AMPLIFIER
    Output power: 2 x 0.5 W
    Speaker impedance: 2 x 8 ohm
    Frequency response: 100 Hz - 10 kHz (± 4 dB)

    TUNER - FM SECTION
    Tuning range: 87.5~108 MHz
    IF frequency: 10.7 MHz ± 0.2%
    Sensitivity: <22 dBf at 26 dB S/N
    Selectivity: >22 dB at 300 kHz
    IF rejection: >50 dB
    Image rejection: >20 dB

    TUNER - AM SECTION
    Tuning range: 522~1607 kHz
    IF frequency: 468 kHz
    Sensitivity: <5600 цV/m at 26 dB S/N
    Selectivity: >16 dB
    IF rejection: >24 dB
    Image rejection: >28 dB

    COMPACT DISC
    Frequency response: 100 Hz - 10 kHz
    S/N ratio: >50 dB
    Channel difference 1 kHz: < 3 dB
    Channel crosstalk 1 kHz: > 40 dB
    Laser wavelength: 780 ± 20 nm
    Laser light power: < 0.3 mW

    See also:
    AJ3935 /00 (50 Hz, 220-230 V)
    AJ3935 /01 (50-60 Hz, 110/240 V)
    AJ3935 /11 (50-60 Hz, 110/240 V)
    AJ3935 /17 (60 Hz, 120 V - Philips/Magnavox US)

  • Net weight (2.2 lb = 1 kg)
  • 1.9 kg / 4 lb 3 oz (4.185 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers. (Service Manual, 4822 725 26211 (1995))
  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
