Compact Disc Player CD472 00R /01R /05R /07R

Philips Belgium (Belgien)

Data
Forum
Pictures
Collections

  • Year
  • 1987 ?
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 208982

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220; 240 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Compact Disc Player CD472 [00R /01R /05R /07R] - Philips Belgium Belgien
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 420 x 81 x 280 mm / 16.5 x 3.2 x 11 inch
  • Notes

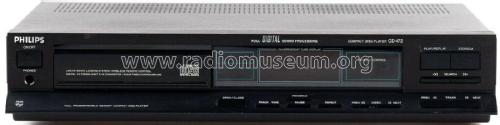

  • A hi-fi stereo compact disc player with a digital display housed in a metal case with infrared  remote control. CDM-2 or CDM-4 CD mechanism, TDA1541 DAC, full digital sound processing.
    Frequency range: 2 to 20,000Hz
    Dynamic range: > 96 dB (20-20,000Hz)
    Signal-to-noise ratio: > 100 dB (20-20,000Hz)
    Channel separation: >  96dB (20-20,000Hz)
    Distortion factor: < 0.003% (20-20,000Hz)

    Fernbedienbarer Compact Disc Player, CD-Laufwerk: CDM-2 oder CDM-4, Full Digital Sound Processing.
    Frequenzumfang: 2 bis 20000 Hz
    Dynamikumfang: >96 dB (20-20000 Hz)
    Geräuschspannungsabstand: >100 dB (20-20000 Hz)
    Kanaltrennung: >96 dB (20-20000 Hz)
    Klirrfaktor: <0,003% (20-20000 Hz)

    Similar to the Philips CD471 (no infrared remote) and the Philips CD473 (additional digital output).

  • Net weight (2.2 lb = 1 kg)
  • 3.1 kg / 6 lb 13.3 oz (6.828 lb)
  • Price in first year of sale
  • 700.00 DM
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Service Manual Philips CD472 dated 1988-03-23)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
