• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1961/1962

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 24091

• • Brand: Deutsche Philips-Ges.

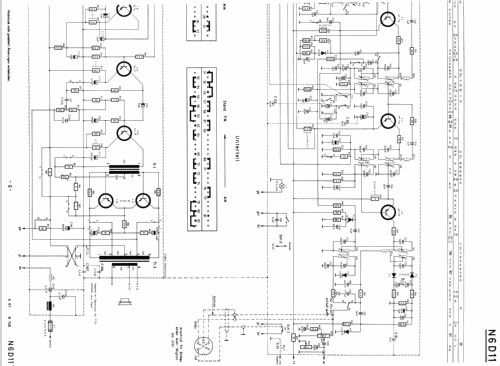

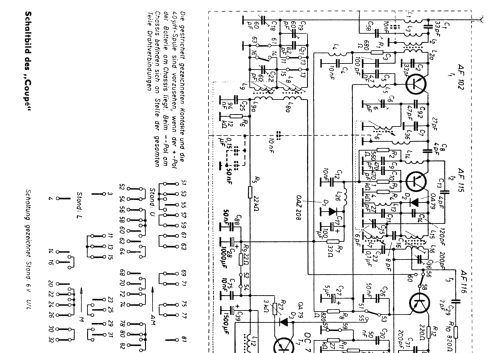

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• AF102 or. AF114 AF115 AF116 AF116 AF116 AF116 OC75 OC71 OC71 OC79 OC26 OC26

• Main principle
• Superhet with RF-stage; ZF/IF 460/10700 kHz

• Tuned circuits
• 9 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Coupé N6D11T - Philips Radios - Deutschland

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 181 x 54 x 175 mm / 7.1 x 2.1 x 6.9 inch

• Notes
• Philips Coupé N6D11T;
  Zweiteiliges Metallgehäuse, Einblockaufbau,
  NF-Teil angelascht: 181 x 54 x 73 mm mit Schnellverschluss.

• Net weight (2.2 lb = 1 kg)
• 3.3 kg / 7 lb 4.3 oz (7.269 lb)

• Price in first year of sale
• 399.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62

• Literature/Schematics (1)
• -- Original-techn. papers.
