Two Band Receiver D-1000
Philips 飞利浦; China
- Country
- People's Republic of China
- Manufacturer / Brand
- Philips 飞利浦; China
- Year
- 1980 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 100246
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 2
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
- Power out
- 0.1 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org

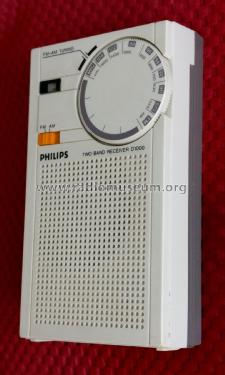

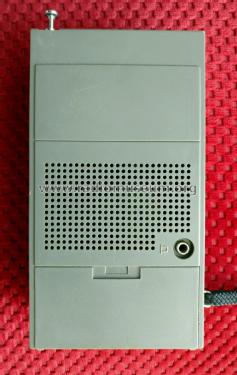

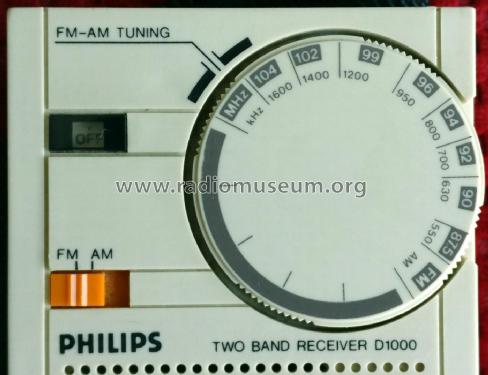

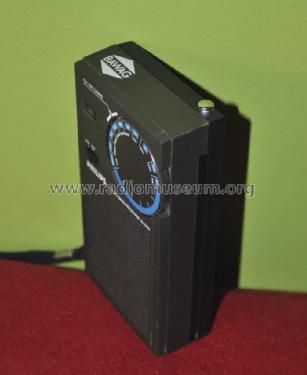

- Model: Two Band Receiver D-1000 - Philips 飞利浦; China
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 75 x 140 x 33 mm / 3 x 5.5 x 1.3 inch
- Notes
- AM/FM-Portable mit Trageschlaufe, 2 Transistoren im UKW-Eingang, LIN-IC TA7613AP (AM/FM Radio NF-V+E), Kopfhöreranschluß über 3,5 mm Klinkenbuchse, Teleskopantenne 42 cm, Ferritantenne 5,5 cm,
- Net weight (2.2 lb = 1 kg)
- 0.260 kg / 0 lb 9.2 oz (0.573 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Ervé Leclercq. See "Data change" for further contributors.
