D1010 /02

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1984 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 263105

• • Brand: Deutsche Philips-Ges.

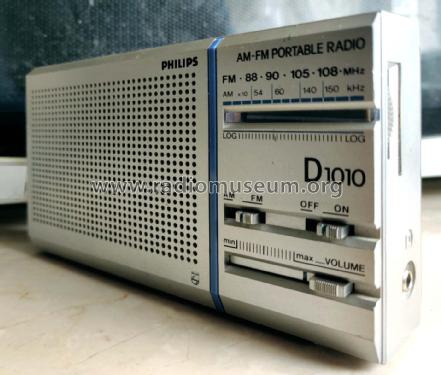

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• 1502A 1502A 1502B 1502C 1502B 1502B 1502C 1402D 1602C 1402B 1802M 1702M

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; 3 AF stage(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.7 cm = 2.2 inch

• Power out
• 0.35 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: D1010 /02 - Philips Radios - Deutschland

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 145 x 86 x 35 mm / 5.7 x 3.4 x 1.4 inch

• Notes

• Kleines Taschenradio mit MW + UKW.
  Parallelmodell Jenny 1010

  Made in Hong Kong.

• Net weight (2.2 lb = 1 kg)
• 0.270 kg / 0 lb 9.5 oz (0.595 lb)
