• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1985 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 128610

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

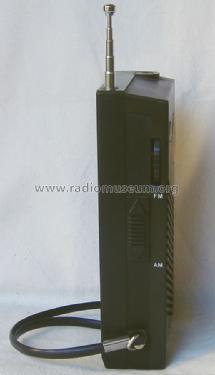

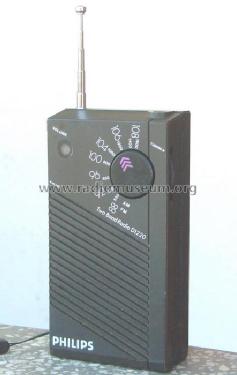

• Model: D1220/32 - Philips Radios - Deutschland

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 140 x 75 x 34 mm / 5.5 x 3 x 1.3 inch

• Notes
• 2 Transistoren 9016 9018 und 1 IC.

• Net weight (2.2 lb = 1 kg)
• 0.3 kg / 0 lb 10.6 oz (0.661 lb)

• Mentioned in
• - - Data from my own collection

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
