• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1969 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 103471

• • Brand: Deutsche Philips-Ges.

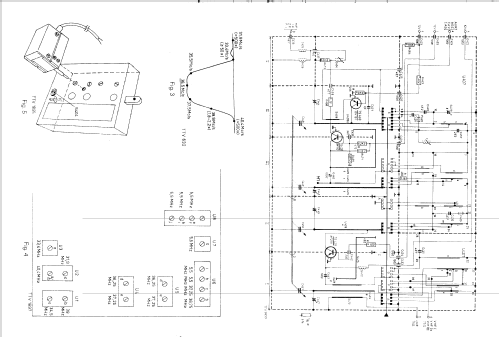

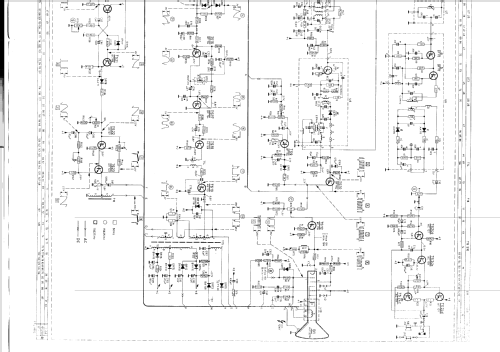

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• A31-20W

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Line / Batteries (any type) / 220/12 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

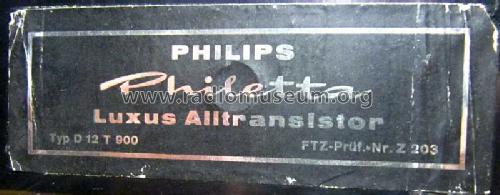

• Model: D12T900 - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 380 x 290 x 280 mm / 15 x 11.4 x 11 inch

• Notes
• VHF/UHF (Kanäle 2 bis 69). 12 Zoll Koffer TV-Gerät.

• Net weight (2.2 lb = 1 kg)
• 8.7 kg / 19 lb 2.6 oz (19.163 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Franz Born †. See "Data change" for further contributors.
