• Country
• Malaysia

• Manufacturer / Brand
• Philips Malaysia; Petaling Jaya

• Year
• 1983/1984

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 133180

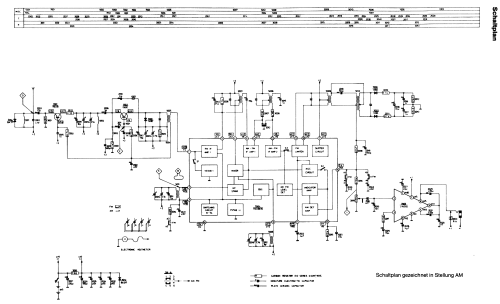

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• ED1502 ED1502 TEA5570 LA4510 BA317 1N60 1N60

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 3 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.5 W (max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Step D1400 /14 /30 /31 /41 /47 - Philips Malaysia; Petaling

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 145 x 85 x 40 mm / 5.7 x 3.3 x 1.6 inch

• Notes

•




• Net weight (2.2 lb = 1 kg)
• 0.360 kg / 0 lb 12.7 oz (0.793 lb)

• Mentioned in
• -- Original prospect or advert (Philips Katalog 1984)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.

• Other Models

• Here you find 67 models, 67 with images and 22 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Malaysia; Petaling Jaya
