• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1985 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 142012

• Number of Transistors
• Semiconductors present.

• Semiconductors
• TDA1220 TBA820

• Main principle
• Superheterodyne (common)

• Wave bands

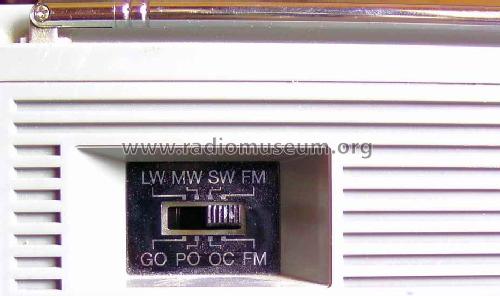

• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.3 cm = 2.9 inch

• Power out
• 1 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

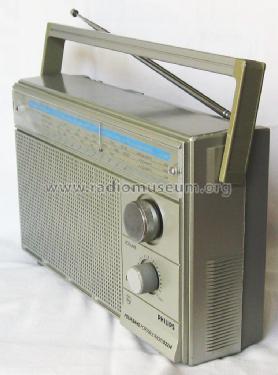

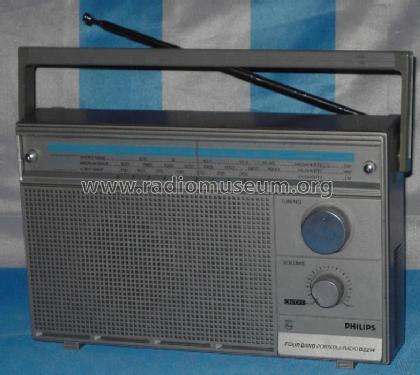

• Model: D2214 /02 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 265 x 165 x 85 mm / 10.4 x 6.5 x 3.3 inch

• Notes
• Ferritantenne: 140 mm x 10 mm rund, Teleskopantenne: 80 cm, 4 Ausziehglieder.
  IC1: TDA 1220A; IC2: TBA820M. Lautsprecher: Hokutone 8 Ohm, 1 W. Batterien vom Typ "Baby".

• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Author
• Model page created by Alfred Przybilla. See "Data change" for further contributors.
