• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1986

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110301

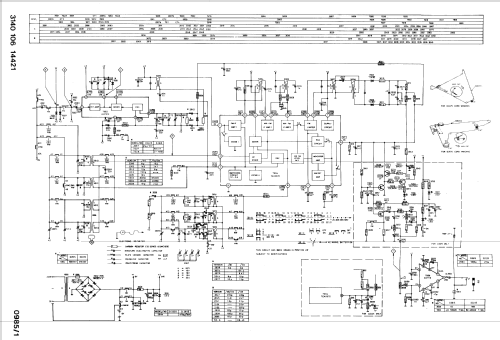

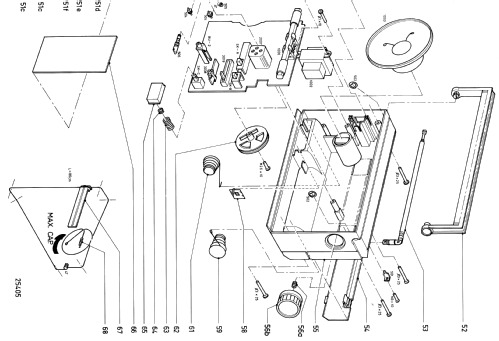

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 4

• Semiconductors
• 2SC945 2SC733 2SC945 2SC945 TEA5570 AN7213 AN7116 1N4001 BA317 BB119 1K60

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave, more than 2 x SW plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 220 / D: 4 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

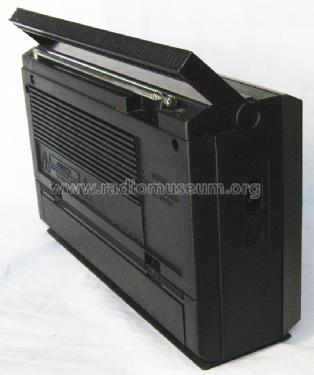

• Model: Passat D2225 /00/02/05/10/11/30/32/35 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 160 x 75 mm / 10.6 x 6.3 x 3 inch

• Notes

• Portable radio, 120-41 / 31-11m shortwave bands with fine tuning.
  5-Band-Kofferempfänger mit 2 KW-Bändern und KW-Feinabstimmung, Spitzen-Musikleistung 1,6W, Anschlüsse: Netz, Kopfhörer.

• Net weight (2.2 lb = 1 kg)
• 1.080 kg / 2 lb 6.1 oz (2.379 lb)

• Price in first year of sale
• 79.00 SFr.

• Source of data
• -- Original prospect or advert

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.

• Other Models

• Here you find 5243 models, 4384 with images and 3445 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
