D2603 /00 /02

• Country
• Hong Kong

• Manufacturer / Brand
• Philips Hong Kong

• Year
• 1982 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 230845

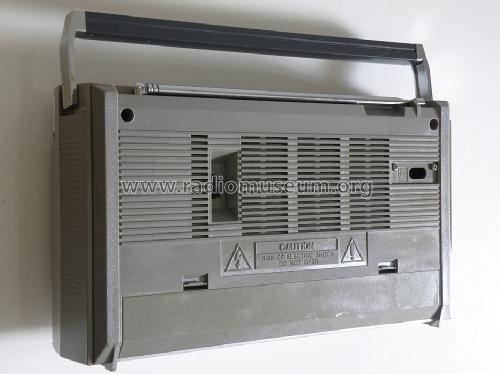

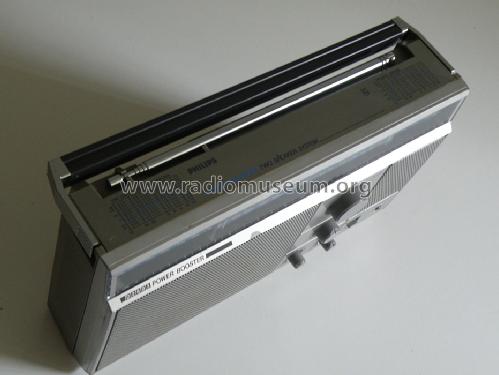

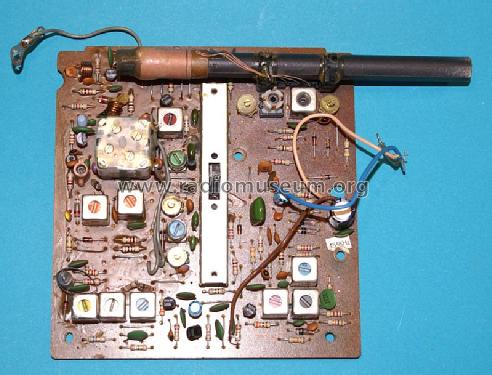

• Picture

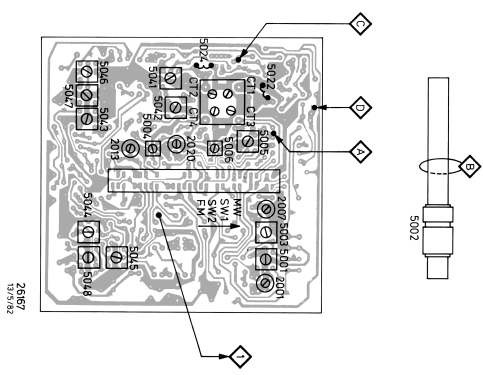

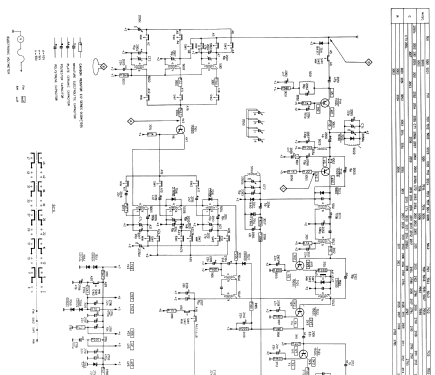

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• ED1502 ED1502 ED1502 ED1502 ED1502 ED1502 ED1402 TBA820 2SB324

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 1 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage

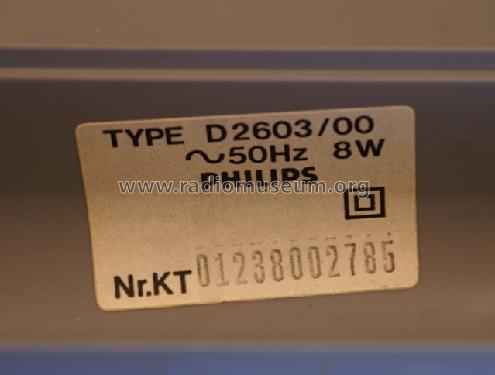

• Line / Batteries (any type) / 110-127; 220-240 / ? Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.8 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: D2603 /00 /02 - Philips Hong Kong

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 172 x 75 mm / 11.8 x 6.8 x 3 inch

• Notes

• Siehe auch Philips D2604 mit Wellenbereichen L-M-K-U.

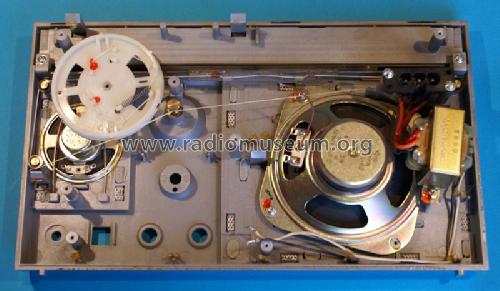

  Lautsprecher: 4" und 2 ¼".

• Net weight (2.2 lb = 1 kg)
• 1.660 kg / 3 lb 10.5 oz (3.656 lb)

• Author
• Model page created by Manfred Rauschen. See "Data change" for further contributors.
