• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1982

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 110287

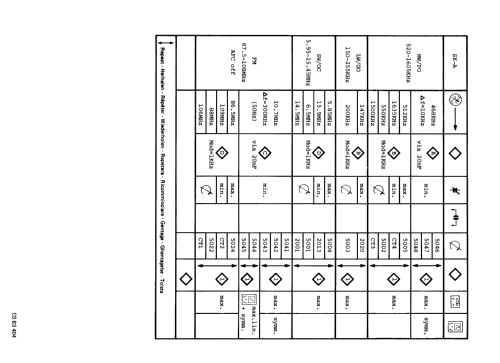

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• ED1502 ED1402 2SB324 TBA820 BA317 1N60 CDG00 1K60 CDG24 1N4001 BZX79

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 / D: 4 x 1,5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

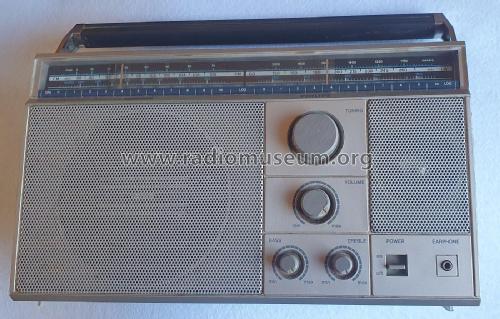

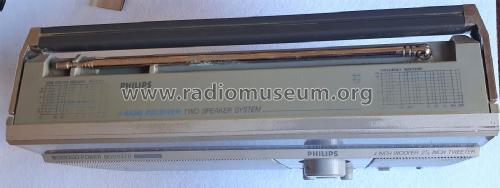

• Model: D2604 /00 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 300 x 180 x 70 mm / 11.8 x 7.1 x 2.8 inch

• Notes

• Each semiconductor type listed once.

  Wavebands:
  FM: 87.5-108 MHz;
  MW: 520-1605 kHz;
  LW: 150-255 kHz;
  SW: 5.95-15.45 MHz.

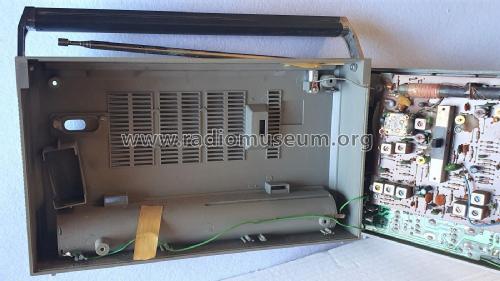

  AFC on FM, not switchable. On-off switch.  2 speakers: woofer, 10 cm, and tweeter, 5.7 cm, with separate controls for bass and treble. 5-element telescopic antenna, 91 cm long. Headphone socket. Handle.

• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Price in first year of sale
• 149.00 SFr.

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.

• Other Models

• Here you find 5250 models, 4394 with images and 3451 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips; Eindhoven (tubes international!); Miniwatt
