D2615 /00/02/05/10/11/30/32/35/40/41
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1985
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 110300
D2615
D2615

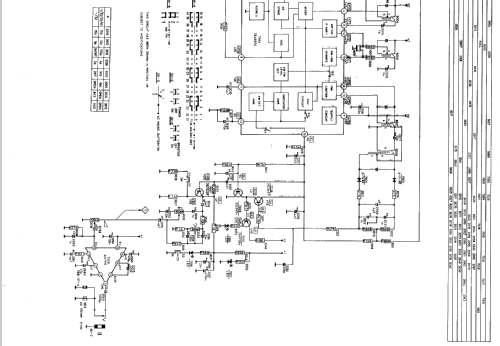

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
- Power type and voltage
- Line / Batteries (any type) / 220 / D: 4 × 1,5 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: D2615 /00/02/05/10/11/30/32/35/40/41 - Philips; Eindhoven tubes
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 300 x 180 x 80 mm / 11.8 x 7.1 x 3.1 inch
- Notes
- Portable radio with 120-41 / 31-11m short wave bands, fine tuning on shortwave.
- Net weight (2.2 lb = 1 kg)
- 1.5 kg / 3 lb 4.9 oz (3.304 lb)
- Price in first year of sale
- 99.00 SFr.
- Source of data
- -- Original prospect or advert
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Martin Bösch. See "Data change" for further contributors.
