• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1981–1983

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 163625

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors

• Semiconductors
• TDA1012 TDA1059

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 110-127; 220-240 / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 1.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

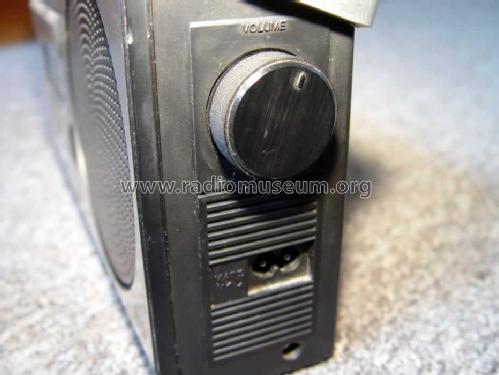

• Model: D6210 /00 /05 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 270 x 160 x 70 mm / 10.6 x 6.3 x 2.8 inch

• Notes

• 2 IC: TDA1012 und TDA1059C.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.
