• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1987 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 296029

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common); ZF/IF 465/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Line / Batteries (any type) / 220 or 240 / C: 6 × 1,5 Volt

• Loudspeaker
• 4 Loudspeakers / Ø 9 cm = 3.5 inch

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

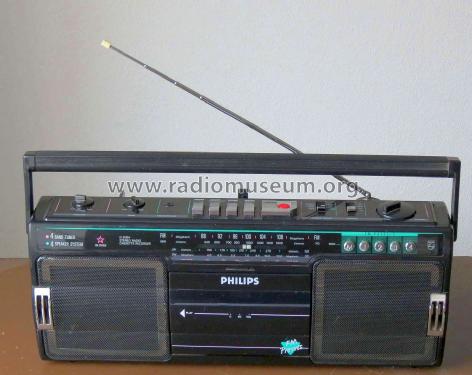

• Model: Stereo-Radio-Recorder D8184 /00 /05 - Philips; Eindhoven tubes

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 440 x 180 x 100 mm / 17.3 x 7.1 x 3.9 inch

• Notes

• 2 Ausführungen:

  ►/00 = 220 Volt
  ►/05 = 240 Volt

  Made in Korea.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Ottmar Lauth. See "Data change" for further contributors.
