• Country
• Netherlands

• Manufacturer / Brand
• Philips; Eindhoven (tubes international!); Miniwatt

• Year
• 1982 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 225573

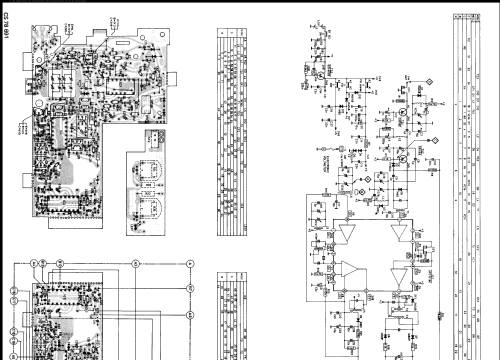

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 3

• Semiconductors
• S9016 S9016 ED1402 µPC1018 LA3361 LM1896 1N60 1N4148 CDG24

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / AA: 3 x 1.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.13 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: D1610 /02 - Philips; Eindhoven tubes

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes

• Stereo to headphones.
  FM: 87,4-107,5MHz.
