D2999 /02

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1986
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 225657

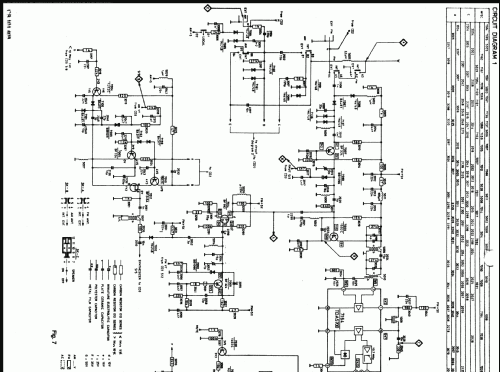

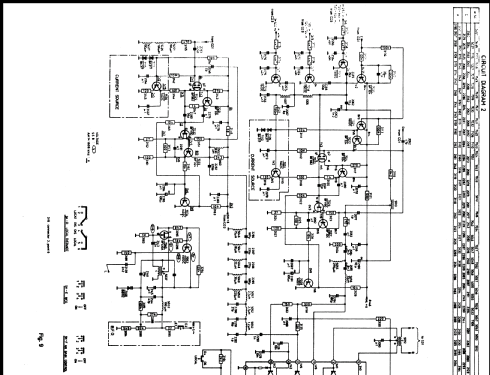

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 70
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 55000/468/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • Line plus power jack, mostly with battery or storage battery / 220; 240 / 6 x 1,5 / 12 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Power out
  • 7 W (undistorted)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: D2999 /02 - Philips; Eindhoven tubes
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 320 x 100 x 250 mm / 12.6 x 3.9 x 9.8 inch
  • Notes

  • SW-coverage 146-26100 kHz in eleven bands, AM/SSB with BFO, digital frequency readout, 16 memories, clock/timer. In USA sold under Magnavox-label. 16 frei belegbare Senderspeicher. Anzeige-lnstrument für Signalstärke bzw. Batterie - Test. Schalter für Nah-/Fernempfang. Hochfrequenz - Verstärkungsregler. Schaltbare BFO-Einheit für SSB - Empfang. Digitaluhr mit 12/24-StundenAnzeige.

    Each semiconductor type listed once.

  • Mentioned in
  • (D) Funk Das internationale Magazin der Funktechnik Heft 1, Januar 1986, Beschreibung ab S. 16
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
