• Country
• Hong Kong

• Manufacturer / Brand
• Philips Hong Kong

• Year
• 1990 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 226182

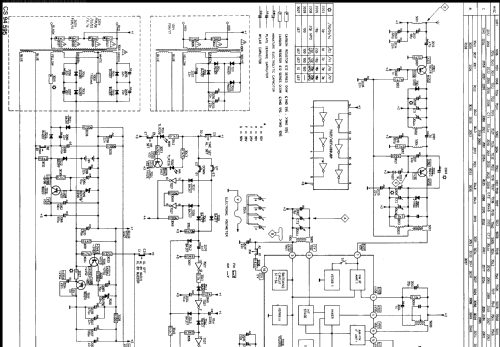

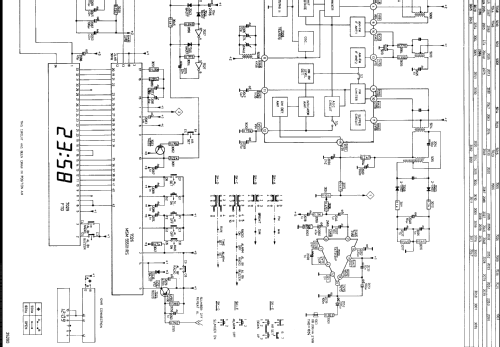

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• ED1502 ED1502 ED1402 ED1402 ED1702 ED1602 ED1602 ED1402 TEA5570 TA7313 MSM55501 CD4069 1K60 BA317 1N4001 BZX79

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 50 Hz, 240 V & for back-up 6F22/6LR61 (PP3): 1 x 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.2 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 2-Band Clock Radio D3090 /10 - Philips Hong Kong

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes

• This model is factory supplied with a mains lead fitted with an Australian/New Zealand Type I power plug.

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
